端面弹簧釜用机械密封件的标准型号规格表
优质内容 来源:O型圈厂家 作者:旭丽橡塑 发布时间:2020-07-03 18:14:24 阅读次数: 收藏数:15 分享:45
导读:下面旭丽橡塑小编列出了弹簧釜用机械密封件的标准型号规格表,如对你有帮助,建议你收藏起来哦! 搅拌轴轴径 d(h9) D D1 D2 Hnax n- h 30un S0mm 235mm 190mm 156mm 360m 8--22mm 24mm 40mm 40mm 235mm 190mm 156mm 360mm 8-22mm. 24mm 50mm 50mm 270mm 220mm 184mm 380mm 8-26mm 26mm 60mm 60mm 270mm 220mm 184mm S80mm 8--26mm 26mm 80mm 80mm 300mm 250mm 211mm 405mm 8--26mm 28mm 90mm 90zn 360mm 310mm 274mm 420mm 12--26mm S0mm 100mm 100mm 360mm 310mm 274mm 430mm 12--26mm...
下面旭丽橡塑小编列出了弹簧釜用机械密封件的标准型号规格表,如对你有帮助,建议你收藏起来哦!

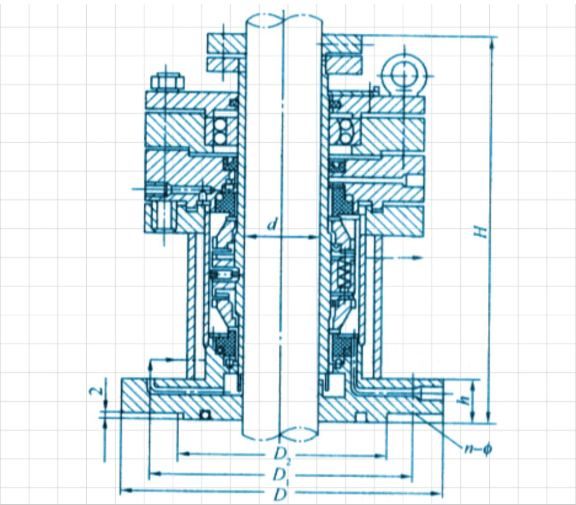

搅拌轴轴径 | d(h9) | D | D1 | D2 | Hnax | n-φ | h | |
30un | S0mm | 235mm | 190mm | 156mm | 360m | 8--22mm | 24mm | |
40mm | 40mm | 235mm | 190mm | 156mm | 360mm | 8-22mm. | 24mm | |
50mm | 50mm | 270mm | 220mm | 184mm | 380mm | 8-26mm | 26mm | |
60mm | 60mm | 270mm | 220mm | 184mm | S80mm | 8--26mm | 26mm | |
80mm | 80mm | 300mm | 250mm | 211mm | 405mm | 8--26mm | 28mm | |
90mm | 90zn | 360mm | 310mm | 274mm | 420mm | 12--26mm | S0mm | |
100mm | 100mm | 360mm | 310mm | 274mm | 430mm | 12--26mm | 30mm | |
110mm | 110mm | 360mm | 310mm | 274mm | 435mm | 12--26mm | 30mm | |
120mm | 120mm | 360mm | 310cm | 274mm | 445mm | 12--26mm | 30mm | |
130mm | 130mm | 360mm | 310zm | 274mm | 460mm | 12--26mm | S0mm | |
140mm | 140mm | 425mm | 370mm | 330mm | 475mm | 12--30mm | 32mm | |
160mm | 160mm | 425mm | 370mm | 330mm | 495mm | 12--30mm | 32mm | |
180mm | 180mn. | 485mm | 430mm | 389mm | 515mm | 16-30mm | 34mm | |
200mm | 200mm | 555mm | 490mm | 448mm | 535mm | 16-33mm | 38mm | |
220mm | 220mm | 620mm | 550mm | 503mm | 365mm | 16-36rm | 40mm | |
密封件的参数单位代号都代表什么? |
D1-机械密封圈的公称外径; d1机械密封圈的公称内径; D-釜用机械密封圈内径; d-釜用机械密封圈直径; d2-釜用机械密封圈的宽度; |
